Air pressure quick control regulator
Feature function
The verification device of pressure gauge air pressure controller is specially designed for rapid calibration of general pressure gauge. The output pressure is generated by stepless variable speed control gas, which can quickly control the pressure, calibrate the positive and negative process, and generate the pressure only through one key, so as to achieve the purpose of rapid gauge verification, improve the verification speed and efficiency of pressure instrument, and be a good assistant for pressure instrument verification engineers.
Technical features
v Rapid verification and calibration of pressure instruments
v through external sources, such as high and low pressure workstation platform or (gas cylinder)
v It can be set according to the range of the calibrated pressure instrument and can be used as the upper limit fixed value control pressure setting
v Ensure that there is no overpressure and overpressure during the verification and calibration of pressure instruments
v Generate pressure at will through artificial intelligence and stepless variable speed pressure controller
v It can be connected to any pressure instrument connection platform (the existing old and new pressure gauge platforms can be connected together)
Technical indicators
v Control output pressure: (- 0.1-0) MPa, (0-1.2) MPa or (0-7) MPa
v Fixed value control pressure: (- 0.1-0) MPa, (0-1.2) MPa or (0-7) MPa
v Working air inlet pressure: external air source < 12.5Mpa
v Selection of external origin: high and low pressure workstation platform or (gas cylinder) can be used
v Power supply: AC220V, 50Hz, 100W
v Specification and size: 370mmx310mmx130mm
v Product model: ZHK-2306

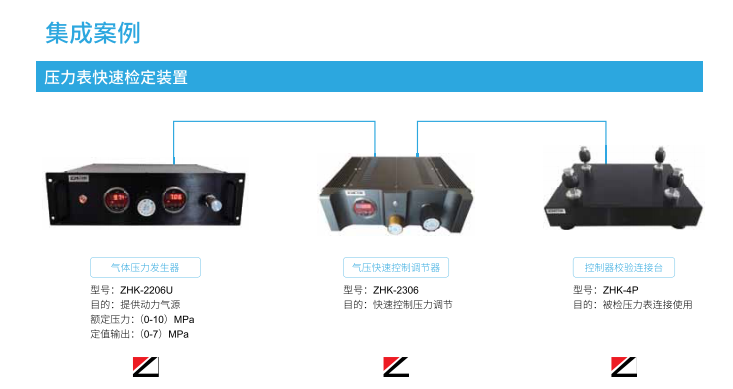

Conditions for fast control verification device of integrated pressure gauge
Condition 1: external origin selection: high and low pressure workstation platform or (gas cylinder)
Condition 2: rapid control verification device for pressure gauge (product model: ZHK-2306)
Condition 3: the pressure gauge is connected to the inspection table (the existing old and new pressure gauge tables can be connected together)
Condition 4: standard pressure gauge (digital pressure gauge or precision pointerpressure gauge)
